Application |
|
Hospitals: Operating theatres, operating rooms, intensive care units (ICUs), and sterile areas |
|
Laboratories: Clean zones, workstations, and exhaust air filtration of toxic aerosols |
|
Industry: Electronics, optics, pharmaceutical, food, and chemical industries |

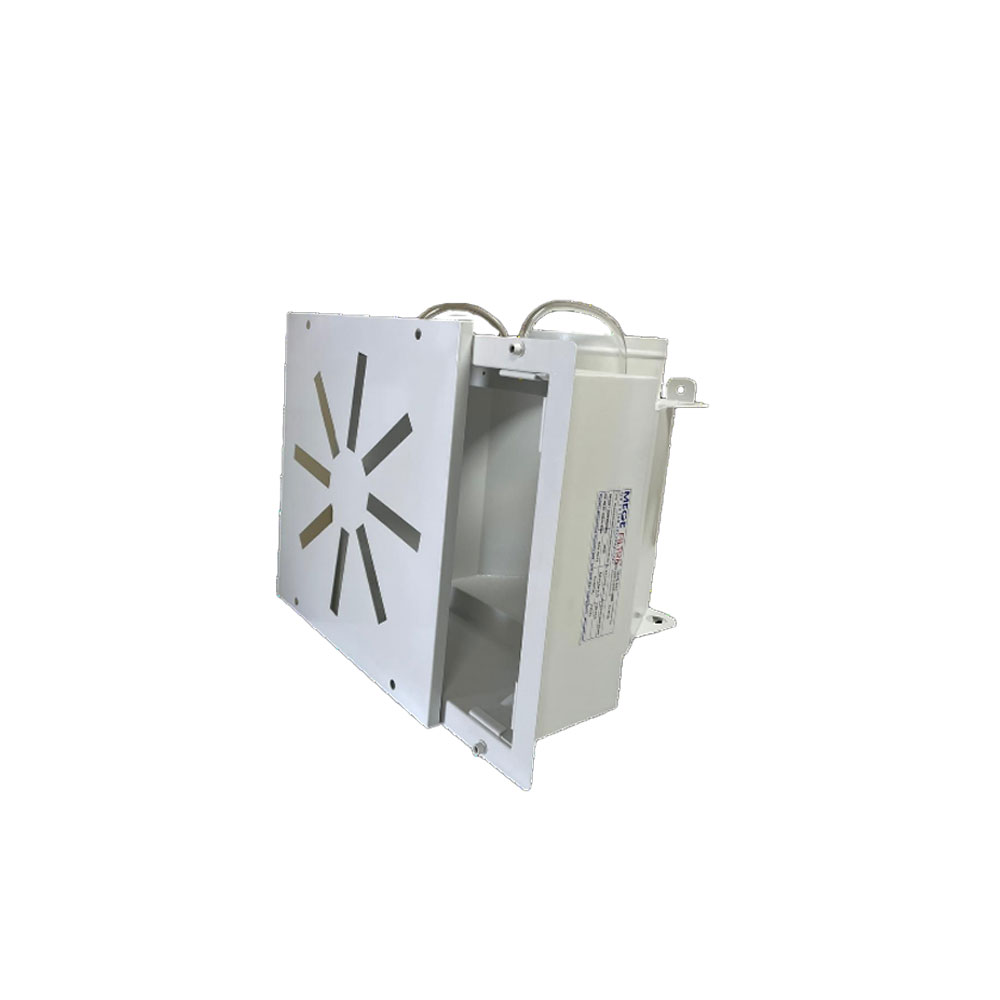

MEGE HEPA filter boxes are designed for use in cleanroom applications where strict hygiene and air quality requirements must be met. They are key components in maintaining controlled and hygienic indoor environments in cleanrooms classified according to ISO 14644-1.
The units are equipped with H13 or H14 HEPA filters, ensuring high-efficiency particle removal. Inlet configurations can be customized to meet specific project requirements.
|
Product Code |
Box Dimensions (WxDxH) |
Filter Dimensions (WxDxH) |
Diffusers Dimensions WxDxH |
Air Flow Rate |
Entry Dimension Ø |
Air Inlet Direction |
|
mm |
mm |
mm |
m³/h |
mm |
||
|
MGBX-BS-W69-YG-DB-160 |
321x321x349 |
305x305x69 |
353x353x14 |
150 |
148 |
Side |
|
MGBX-BS-W69-YG-DB-200 |
473x473x399 |
457x457x69 |
505x505x14 |
340 |
198 |
Side |
|
MGBX-BS-W69-YG-DB-200 |
551x551x399 |
535x535x69 |
583x583x14 |
465 |
198 |
Side |
|
MGBX-BS-W69-YG-DB-200 |
591x591x399 |
575x575x69 |
623x623x14 |
535 |
198 |
Side |
|
MGBX-BS-W69-YG-DB-200 |
626x626x399 |
610x610x69 |
658x658x14 |
600 |
198 |
Side |
