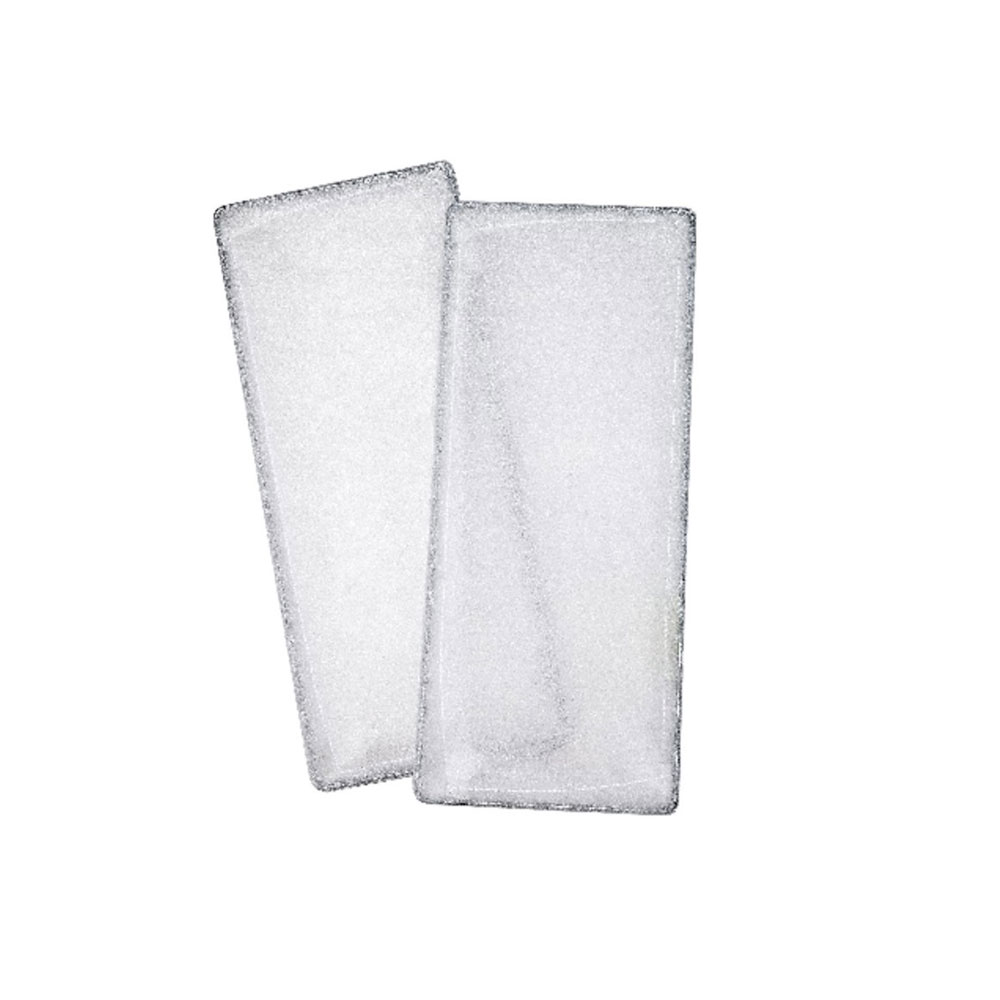

TECHNICAL SPECIFICATIONS |
|||
|
FILTER CLASS |
EN 779-2012 |
G2 |
G3 |
|
ISO 16890 |
Coarse 40% |
Coarse 50% |
|
|
MEDIA |
Polyester, Polyurethane Foam |
||
|
FRAME TYPE |
Galvanized, Aluminium, Stainless steel |
||
|
MAX OPERATING TEMPERATURE |
75°C |
||
|
APPLICATION |
|||
|
Prefilter for HVAC |
|||
|
Product Code |
Class |
Filter Media |
Frame |
Dimensions |
Filter surface |
Air flow |
Initial Pressure Drop |
Max. Final Pressure Drop |
Weight |
||
|
EN 779 |
ISO 16890 |
mm |
m² |
m³/h |
Pa |
Kg |
|||||
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
202x400x10 |
0,08 |
785 |
25 |
250 |
0,3 |
|
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
202x500x10 |
0,1 |
980 |
25 |
250 |
0,3 |
|
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
202x700x10 |
0,14 |
1.375 |
25 |
250 |
0,35 |
|
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
202x900x10 |
0,18 |
1.760 |
25 |
250 |
0,38 |
|
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
202x1096x10 |
0,22 |
2.150 |
25 |
250 |
0,4 |
|
|
MGFC-2P-A |
G2 |
Coarse 30% |
Polyurethane |
Aluminum |
260x1096x10 |
0,28 |
2.800 |
25 |
250 |
0,4 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
202x400x10 |
0,08 |
785 |
25 |
250 |
0,3 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
202x500x10 |
0,1 |
980 |
25 |
250 |
0,3 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
202x700x10 |
0,14 |
1.375 |
25 |
250 |
0,35 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
202x900x10 |
0,18 |
1.760 |
25 |
250 |
0,38 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
202x1096x10 |
0,22 |
2.150 |
25 |
250 |
0,4 |
|
|
MGFC-2E-G |
G2 |
Coarse 30% |
Synthetic Polyester |
Galvanized |
260x1096x10 |
0,28 |
2.800 |
25 |
250 |
0,4 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
202x400x6 |
0,08 |
785 |
30 |
250 |
0,3 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
202x500x6 |
0,1 |
980 |
30 |
250 |
0,3 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
202x700x6 |
0,14 |
1.375 |
30 |
250 |
0,35 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
202x900x6 |
0,18 |
1.760 |
30 |
250 |
0,38 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
202x1096x6 |
0,22 |
2.150 |
30 |
250 |
0,4 |
|
|
MGFC-3E-WF |
G3 |
Coarse 50% |
Synthetic Polyester |
Wire Frame |
260x1096x6 |
0,28 |
2.800 |
30 |
250 |
0,4 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
202x400x15 |
0,08 |
785 |
50 |
250 |
0,3 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
202x500x15 |
0,1 |
980 |
50 |
250 |
0,3 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
202x700x15 |
0,14 |
1.375 |
50 |
250 |
0,35 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
202x900x15 |
0,18 |
1.760 |
50 |
250 |
0,38 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
202x1096x15 |
0,22 |
2.150 |
50 |
250 |
0,4 |
|
|
MGFC-3E-A |
G3 |
Coarse 50% |
Synthetic Polyester |
Aluminum |
260x1096x15 |
0,28 |
2.800 |
50 |
250 |
0,4 |
|
