TECHNICAL SPECIFICATIONS |
|||
|
FILTER CLASS |
EN 779-2012 |
G2 |
G3 |
|
ISO 16890 |
Coarse 40% |
Coarse 50% |
|
|

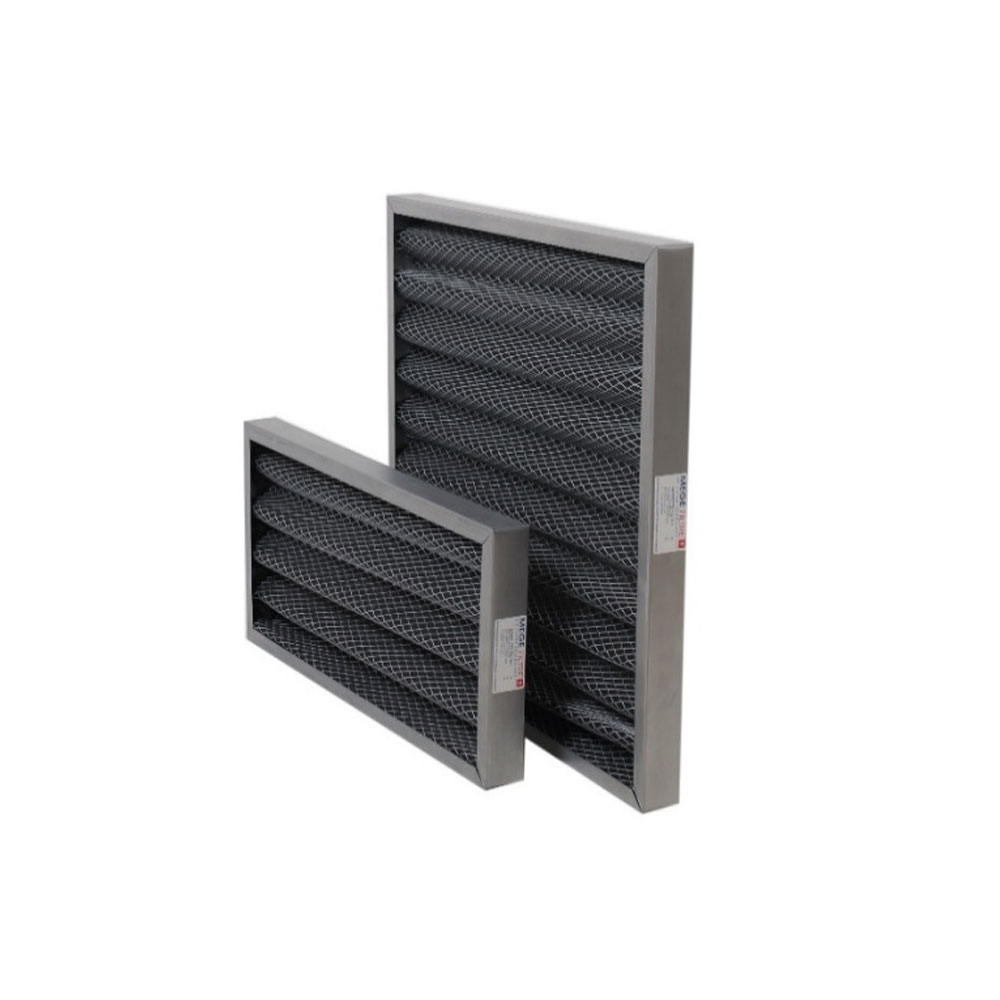

MEDIA |
Polyurethane |
||
|
FRAME TYPE |
Galvanized Steel |
||
|
MAX OPERATING TEMPERATURE |
75°C |
||
|
APPLICATION |
|||
|
HVAC systems as a primary (pre-filtration) stage |
|||
|
Commercial buildings such as offices and shopping centers |
|||
|
Protection of sensitive equipment and machinery |
|
Product Code |
Class |
Dimensions |
Air flow |
Filter surface |

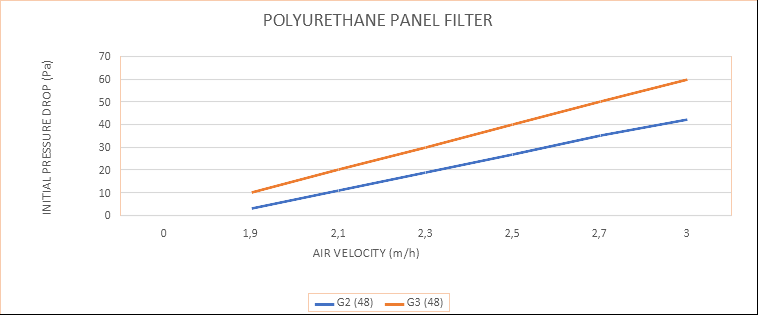

Initial Pressure Drop |
Max. Final Pressure Drop |
Weight |
||
|
EN 779 |
ISO 16890 |
mm |
m³/h |
m² |
Pa |
Pa |
Kg |
||
|
MGC-2P6/30-FN-WG-Z |
G2 |
Coarse 30% |
287x287x48 |
850 |
0,20 |
40 |
450 |
0,7 |
|
|
MGC-2P6/30-FN-WG-Z |
G2 |
Coarse 30% |
287x592x48 |
1.700 |
0,40 |
40 |
450 |
1,2 |
|
|
MGC-2P6/30-FN-WG-Z |
G2 |
Coarse 30% |
490x592x48 |
2.800 |
0,60 |
40 |
450 |
1,9 |
|
|
MGC-2P6/30-FN-WG-Z |
G2 |
Coarse 30% |
592x592x48 |
3.400 |
0,8 |
40 |
450 |
2,2 |
|
|
MGC-3P10/20-FN-WG-Z |
G3 |
Coarse 50% |
287x287x48 |
850 |
0,20 |
50 |
450 |
0,7 |
|
|
MGC-3P10/20-FN-WG-Z |
G3 |
Coarse 50% |
287x592x48 |
1.700 |
0,40 |
50 |
450 |
1,2 |
|
|
MGC-3P10/20-FN-WG-Z |
G3 |
Coarse 50% |
490x592x48 |
2.800 |
0,60 |
50 |
450 |
1,9 |
|
|
MGC-3P10/20-FN-WG-Z |
G3 |
Coarse 50% |
592x592x48 |
3.400 |
0,8 |
50 |
450 |
2,2 |
|
