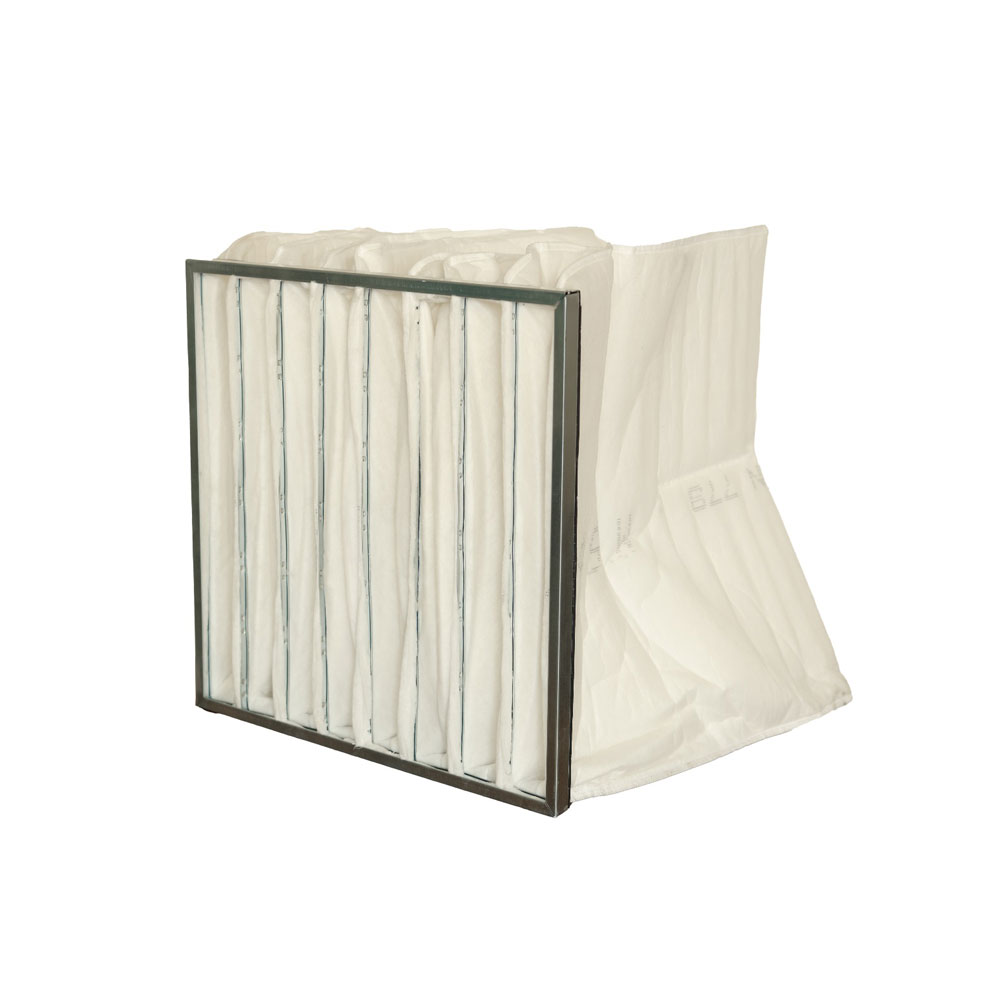

TECHNICAL SPECIFICATIONS |
||
|
FILTER CLASS |
EN 779-2012 |
G4 |
|
ISO 16890 |
Coarse 60% |
|
|
MEDIA |
Polyester |
|
|
FRAME TYPE |
Galvanized Steel |
|
|
MAX OPERATING TEMPERATURE |
75°C |
|
|
HEADER |
20-25 mm |
|
|
APPLICATION |
||
|
HVAC systems as pre-filtration or main filtration stages |
||
|
Air handling units |
||
|
Industrial facilities for dust and particulate control |
|
Product Code |
Class |
Dimensions |
Pocket |
Air flow |
Filter surface |
Initial Pressure Drop |
Max. Final Pressure Drop |
Weight |
||
|
EN 779 |
ISO 16890 |
mm |
m³/h |
m² |
Pa |
Pa |
Kg |
|||
|
MGB-4-SG-25-3 |
G4 |
Coarse 60% |
287x592x360 |
3 |
1700 |
1,3 |
50 |
250 |
1,1 |
|
|
MGB-4-SG-25-5 |
G4 |
Coarse 60% |
490x592x360 |
5 |
2800 |
2,2 |
50 |
250 |
1,7 |
|
|
MGB-4-SG-25-6 |
G4 |
Coarse 60% |
592x592x360 |
6 |
3400 |
2,6 |
50 |
250 |
2 |
|
|
MGB-4-SG-25-3 |
G4 |
Coarse 60% |
287x592x535 |
3 |
1700 |
2,1 |
50 |
250 |
1,2 |
|
|
MGB-4-SG-25-5 |
G4 |
Coarse 60% |
490x592x535 |
5 |
2800 |
3,4 |
50 |
250 |
1,8 |
|
|
MGB-4-SG-25-7 |
G4 |
Coarse 60% |
592x592x535 |
6 |
3400 |
4 |
50 |
250 |
2,1 |
|
|
MGB-4-SG-25-3 |
G4 |
Coarse 60% |
287x592x600 |
3 |
1700 |
2,2 |
50 |
250 |
1,2 |
|
|
MGB-4-SG-25-5 |
G4 |
Coarse 60% |
490x592x600 |
5 |
2800 |
3,7 |
50 |
250 |
1,8 |
|
|
MGB-4-SG-25-6 |
G4 |
Coarse 60% |
592x592x600 |
6 |
3400 |
4,4 |
50 |
250 |
2,1 |
|
