TECHNICAL SPECIFICATIONS |
||
|
FILTER CLASS |
EN 779-2012 |
G4 |
|
ISO 16890 |
Coarse60% |
|
|
MEDIA |
Synthetic fiber |
|
|
FRAME TYPE |
Cardboard |
|
|
APPLICATION |
||
|
HVAC systems as pre-filters or main filters |
||
|
Commercial buildings such as offices, shopping centers, and airport |
|
Product Code |
Class |
Dimensions |
Air flow |
Filter surface |

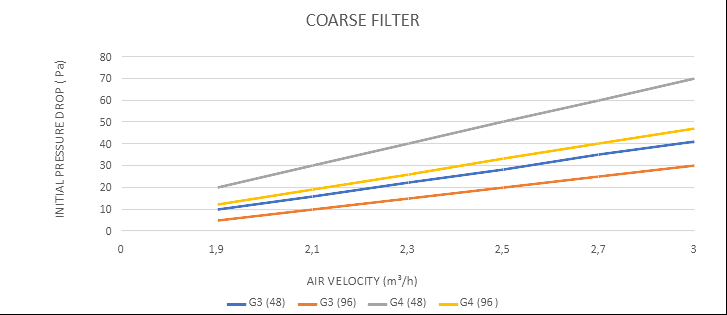

Initial Pressure Drop |
Max. Final Pressure Drop |
Weight |
|
|
EN 779 |
ISO 16890 |
mm |
m³/h |
m² |
Pa |
Pa |
Kg |
|
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
287x592x48 |
1.700 |
0,75 |
70 |
450 |
0,9 |
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
490x592x48 |
2.820 |
1,15 |
70 |
450 |
1,1 |
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
592x592x48 |
3.400 |
1,4 |
70 |
450 |
1,3 |
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
287x592x95 |
2.100 |
1,3 |
65 |
450 |
1,4 |
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
490x592x95 |
3.500 |
2 |
65 |
450 |
1,7 |
|
MGC-4SS-FN-WK-Z |
G4 |
Coarse 60% |
592x592x95 |
4.250 |
2,35 |
65 |
450 |
2 |
