TECHNICAL SPECIFICATIONS |
|||||
|
FILTER CLASS |
EN 779-2012 |
M6 |
F7 |
F8 |
F9 |
|
ISO 16890 |
ePM2,5 50% |
ePM1 60% |
ePM1 70% |
ePM1 85% |
|
|
MEDIA |
Micro glass fibre |
||||
|
FRAME TYPE |
Plastic |
||||
|
MAX OPERATING TEMPERATURE |
80°C |
||||
|
SEPARATOR |
Hot melt |
||||
|
SEALING COMPOUND |
Polyurethane |
||||
|
FACEGUARD |
Available on request |
||||
|
GASKET |
Available on request (Pu or EPDM) |
||||
|
HEADER |
25 mm |
||||
|
DEPTH |
130 mm |
||||
|
APPLICATION |
|||||
|
HVAC systems requiring high-efficiency filtration |
|||||
|
Air handling units (AHUs) as final or secondary filters |
|
Product Code |
Class |
Dimensions |
Air flow |
Filter surface |

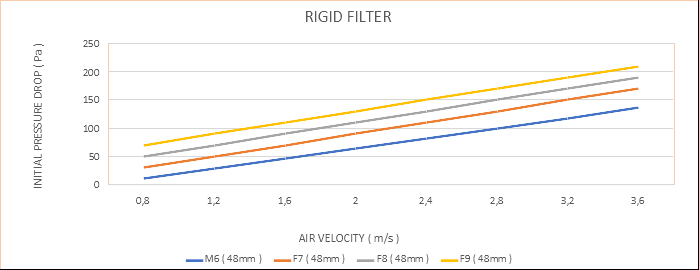

Initial Pressure Drop |
Max. Final Pressure Drop |
Weight |
||
|
EN 779 |
ISO 16890 |
mm |
m³/h |
m² |
Pa |
Pa |
Kg |
||
|
MGR-6-P-FNW-100-25 |
M6 |
ePM2,5 50% |
287x592x130 |
1700 |
7 |
100 |
450 |
3 |
|
|
MGR-6-P-FNW-100-25 |
M6 |
ePM2,5 50% |
490x592x130 |
2850 |
12 |
100 |
450 |
4 |
|
|
MGR-6-P-FNW-100-25 |
M6 |
ePM2,5 50% |
592x592x130 |
3400 |
14 |
100 |
450 |
5 |
|
|
MGR-7-P-FNW-100-25 |
F7 |
ePM1 60 % |
287x592x130 |
1700 |
7 |
130 |
450 |
3 |
|
|
MGR-7-P-FNW-100-25 |
F7 |
ePM1 60 % |
490x592x130 |
2850 |
12 |
130 |
450 |
4 |
|
|
MGR-7-P-FNW-100-25 |
F7 |
ePM1 60 % |
592x592x130 |
3400 |
14 |
130 |
450 |
5 |
|
|
MGR-8-P-FNW-100-25 |
F8 |
ePM1 70 % |
287x592x130 |
1700 |
7 |
150 |
450 |
3 |
|
|
MGR-8-P-FNW-100-25 |
F8 |
ePM1 70 % |
490x592x130 |
2850 |
12 |
150 |
450 |
4 |
|
|
MGR-8-P-FNW-100-25 |
F8 |
ePM1 70 % |
592x592x130 |
3400 |
14 |
150 |
450 |
5 |
|
|
MGR-9-P-FNW-100-25 |
F9 |
ePM1 85 % |
287x592x130 |
1700 |
7 |
170 |
450 |
3 |
|
|
MGR-9-P-FNW-100-25 |
F9 |
ePM1 85 % |
490x592x130 |
2850 |
12 |
170 |
450 |
4 |
|
|
MGR-9-P-FNW-100-25 |
F9 |
ePM1 85 % |
592x592x130 |
3400 |
14 |
170 |
450 |
5 |
|
